Maintaining a React Native Library

React Native is an excellent framework for building mobile apps. The best thing about React Native is how it provides the developers with a solid set of primitive UI components. This means there’s plenty of opportunities for you to build your own library and publish it to the open-source community.

The Problem

Building & maintaining quality open-source libraries is hard work. Especially React Native libraries are harder since they often need to be verified on both Android & iOS platforms.

I ran into this exact issue when I started working on open-sourcing the libraries I built for my personal use. I created an organization that holds the collection of the libraries. It’s called React Native Toolkit

I wanted to ensure developers get to try out all my libraries, at the same time, I should be able to quickly make small updates and bug fixes without having to spend too much time.

In summary, I wanted to ensure I covered all the following 6 items for my open-source libraries,

• Proper Linting of code & commit messages
• A working example in an actual app
• Unit tests
• Detailed documentation that covers all the use cases
• Visual testing after code changes
• Easily review PRs

Solution

Once I have created a list of things needed for my open source projects, I started exploring various tools that’ll help me achieve the individual targets.

So I started working on my library react-native-better-image while evaluating the various options. I had two major tasks

• Picking the right tools
• Automate as many tasks as possible

Picking the right tools

React Native Community’s Bob - Linting + Example App

This almost felt like a no-brainer. React Native Community which hosts a collection of quality libraries already had a tool which would make building react native libraries so much simpler.

Bob had almost everything I needed in terms of Proper Linting & having a working example app using the library.

The example app is also pre-linked with the library’s source so you can just start writing code and you probably won’t have to worry about anything. Just import your library inside the app & setup your working example!

That’s 2 out of 6 items covered

Alternatives

One other alternative I tried in this category is create-react-native-module. This one is good but bob is just too better.

React Native Testing Library - Unit Tests

I’m a big fan of the testing library in general. It encourages you to write tests in the way your software is being used rather than being implemented. Which is why I immediately picked up the React Native Testing Library that brings all the best parts to the native side of development.

If your library uses native iOS or Android code, then you’ll have to write tests that run on the native side. However, since all my libraries are pure JavaScript, I didn’t explore any on the native side. Suggest the tools you use for this purpose in the comments :)

That’s 3 out of 6 items covered

Alternatives

If your library requires an end to end testing, then you can add detox to your project. You can use the example app created by Bob to run the test cases.

Another common library for writing unit tests is Enzyme. If you are already familiar with enzyme then you can use it for your library.

Storybook - Documentation

Storybook v6.0 was recently released with improved documentation. While storybook already has a React Native version, the react version is much more powerful & better suited for our documentation.

The documentation can be hosted a static site & it will showcase your library in real-time. Check out my react-native-better-image documentation.

To get storybook working with your React Native library, you can add it to your example expo app following this example from the expo team.

I only had to change the webpack config in my .storybook/main.js file and it worked well using react-native-web

4 out of 6 now covered

Alternatives

I haven’t personally tried any alternatives to storybook yet. Maybe you can read about it in this blog post by logrocket.

Chromatic - Visual Testing

One other reason I was firmly sticking to storybooks is their integration with chromatic. Chromatic lets you quickly do visual tests on your stories. You can also easily share stories & get feedback from others.

They have a generous free tier & their team is kind enough to provide me support when I ran into issues with my react-native + storybook setup.

I’ll be using chromatic for reviewing PRs, will explain about it in the automation section.

Chromatic makes visual testing a breeze! That makes 5 out of 6 items handled

Expo Cli - Reviewing PRs

Reviewing PRs is the most important thing in Open Source projects. I have been struggling to review PRs in some of my old projects as I have to manually clone & run the code to check how it affects my library. Many times I just don’t have the bandwidth to do so…

This time, however, I have decided to make the reviewing process as easy as possible. The trick is to have a good example application in your library that covers almost all use cases. Once someone raises a PR, you can generate a build using the Expo CLI. Expo team has been making this process a lot easier by creating a Github Action that can easily publish a review version of your library.

Along with this, the stories in the PR are also pushed to chromatic. This means I should be able to review a PR fairly faster. I haven’t yet received any PRs yet, so fingers crossed 🤞

Automating stuff with Github Actions

Now that we have all the right tools in place, it is time to automate the Build, Review & Publishing process for your new React Native library. Which will be covered in the next part of this series!

All open-source Github repositories have free Github Actions available with which we can automate most of our workflows. I’ll be using Github Actions throughout the automation process.

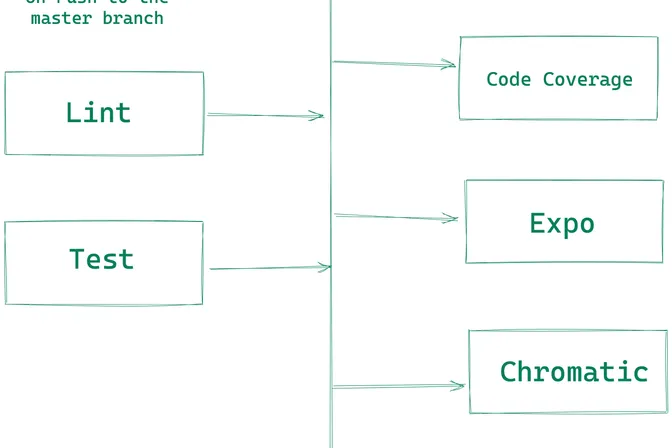

The library’s build consists of the following items ﹣

• Linting
• Running Tests
• Publishing the test coverage
• Publishing the example app to expo
• Publishing the stories to chromatic
• Publish the storybook which contains documentation as a static site

You can find my build workflow in the .github/workflows/build.yml file of my react-native-better-image project. This is how the build process should look like ﹣

When to trigger the workflow

I wanted the build workflow to ensure the master branch is always stable. Hence it will run on all the pushes to master. But it will not run for tags, as I have planned another release workflow for this

name: build
on:
  push:
    branches:
      - master
    tags:
      - "!*" # Do not execute on tags
    paths:
      - example/*
      - src/*
      - test/*
      - __tests__/*
      - "*.json"
      - yarn.lock
      - .github/**/*.yml

Linting

Since we are using react-native-community/bob in our project, we can run both lint & typescript scripts in the package.json file which is enough to complete the lint process

lint:
  name: lint
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - run: npx yarn typescript
    - run: npx yarn lint

Testing & Coverage

For displaying the test coverage, I decided to use code climate for open source projects. They also have a nice action available at paambaati/codeclimate-action.

Code climate checks your code for best practices and provides you with maintainability metrics. Along with that, you’ll also get code coverage reports. Once you setup code climate you can add their badges to your repo that gives everyone a live code quality score ﹣

The following configuration is used for running tests ﹣

test:
  strategy:
    matrix:
      platform: [ubuntu-latest, macOS-latest]
      node: ["12.x"]
  name: test/node ${{ matrix.node }}/${{ matrix.platform }}
  runs-on: ${{ matrix.platform }}
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: ${{ matrix.node }}
    - run: npx yarn bootstrap
    - run: npx yarn test

Once both linting & testing jobs are completed, you have to push your code coverage to code climate. Following their docs you need to create a secret in your repository with name CC_TEST_REPORTER_ID after which add the following configuration

coverage:
  needs: [test, lint]
  name: coverage
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - uses: paambaati/[email protected]
      env:
        CC_TEST_REPORTER_ID: ${{secrets.CC_TEST_REPORTER_ID}}
      with:
        coverageCommand: npx yarn test --coverage
        debug: true

Publish example app to expo

Publish should also happen after the lint & test jobs. This time we will be using the expo/expo-github-action. As per the action’s docs, you’ll have to add your expo username & password to your repo’s secrets under the name EXPO_CLI_USERNAME & EXPO_CLI_PASSWORD.

If you have an organization, you can add it under the organization secrets and share it with all your repositories!

The first step to publish is to run yarn bootstrap command. However, the next step expo run should run inside the example directory. For this we will use the working-directory config

publish:
  needs: [test, lint]
  name: Publish example app to Expo 🚀
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@v2
    - uses: actions/setup-node@v1
      with:
        node-version: 12.x
    - uses: expo/expo-github-action@v5
      with:
        expo-version: 3.x
        expo-username: ${{ secrets.EXPO_CLI_USERNAME }}
        expo-password: ${{ secrets.EXPO_CLI_PASSWORD }}
    - run: npx yarn bootstrap
    - working-directory: example
      run: expo publish

You’ll get a published page for your library’s example app. You can check out for the page of my react-native-better-image library’s example app.

Publish stories to chromatic

Similar to expo, chromatic also have a GitHub action available in chromaui/action. You have to create a new project in chromatic and get your project token. Then add it to your repository’s secrets under the name CHROMATIC_PROJECT_TOKEN

We need to run chromatic action inside the example directory since our storybook lives in this directory. The chromaui/action didn’t have an option to run it inside a specific directory. So I had to manually add the following script in my example app’s package.json file ﹣

"chromatic": "npx chromatic"

Then added the following workflow configuration which manually runs chromatic ﹣

chromatic:
  needs: [test, lint]
  name: Publish storybook to chromatic 🧪
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@v2
    - uses: actions/setup-node@v1
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - run: npx yarn chromatic
      working-directory: example
      env:
        CHROMATIC_PROJECT_TOKEN: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}

Publish storybook as a static site

I used Netlify to publish my storybook as a static site. I was initially planning to use GH Pages, but I needed the 1-click rollback & Deploy Previews offered by netlify. I installed the Netlify app which automatically takes care of the building the repo & deploy previews so I didn’t have to write any actions config.

If you are interested to use GitHub pages for your library, you can use the Deploy to GitHub Pages action for this purpose.

You can also try Netlify CLI if you want to configure deploys with netlify through GitHub Actions.

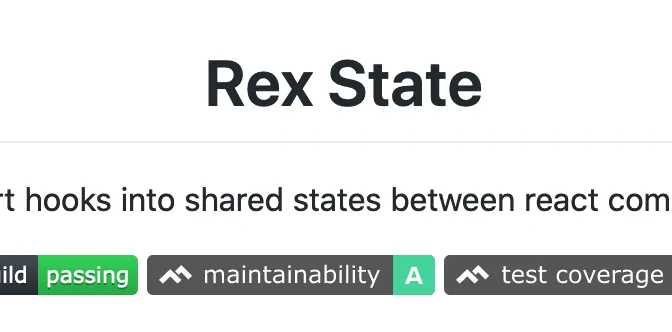

This build workflow is actively used in two of my libraries rex-state & react-native-better-image

In the next part, I’ll explain how to set up the review workflow!

Reviewing PRs are an important part of managing Open Source libraries. However, they might require a considerable amount of time & effort from your busy life which means, you need to be as efficient as possible.

My whole toolchain was set up around making the review process as easy as possible. This time we’ll create Github Action workflows to make the review process a whole lot simpler.

Every PR raised to the library will have the following checks performed automatically

• Linting & Testing
• Code coverage report
• Deploy preview of the updated storybook docs
• Build a review version of the example mobile app with link to quickly test it
• Send all stories to chromatic to do a visual review

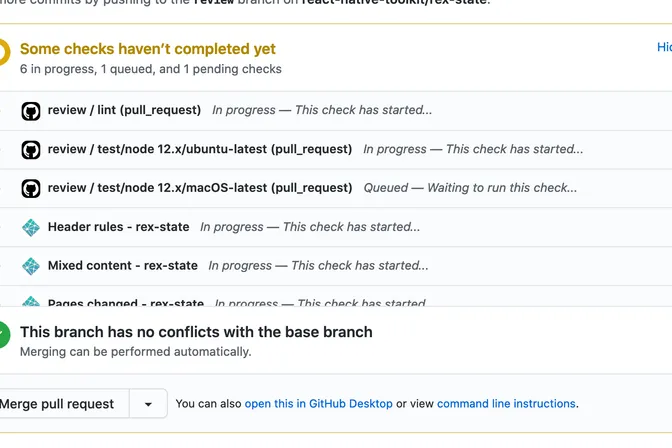

As soon as the PR is sent, you should be able to see the progress of the review workflow ﹣

The above image is from a PR of my rex-state library. Let’s look into how we can implement this effectively.

You can find my working review workflow at .github/workflows/review.yml file of my rex-state library.

Triggering the workflow

This workflow will run on all pull requests

name: review
on: pull_request

Linting & Testing

This step is the same as what we did for our build workflow. All the other jobs will run only after Linting & Testing are complete.

lint:
  name: lint
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - run: npx yarn typescript
    - run: npx yarn lint

test:
  strategy:
    matrix:
      platform: [ubuntu-latest, macOS-latest]
      node: ["12.x"]
  name: test/node ${{ matrix.node }}/${{ matrix.platform }}
  runs-on: ${{ matrix.platform }}
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: ${{ matrix.node }}
    - run: npx yarn bootstrap
    - run: npx yarn test

Coverage report

Previously on the build step, we used Code Climate to store our test coverage reports. However, on PRs we need a way to quickly check the test coverage for the incoming code.

For this, we can use the romeovs/lcov-reporter-action which will post a nice comment on the PR with the test coverage details. You’d get a report like this following comment ﹣

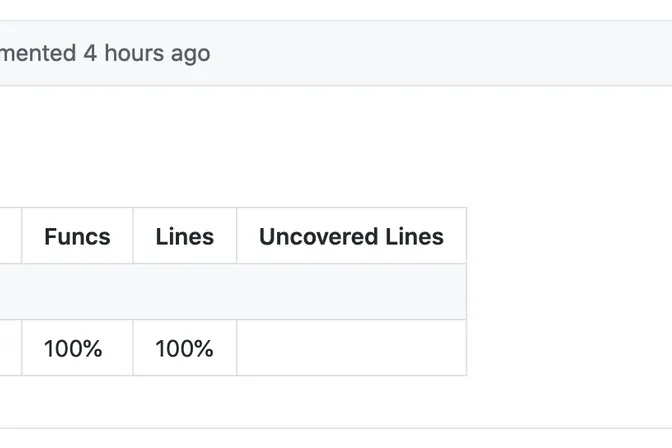

Add the following configuration for receiving the coverage as a comment ﹣

coverage:
  needs: [test, lint]
  name: coverage
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - run: npx yarn test --coverage
    - uses: romeovs/[email protected]
      with:
        github-token: ${{ secrets.GITHUB_TOKEN }}

Deploy preview of the updated storybook docs

Since I was using the Netlify Github App, I’m getting the deploy previews out of the box without any kind of additional setup. You can try the Netlify CLI if you want to manually enable deploy previews with Github Actions.

Review Version of the Example App

This is where the power of expo toolchain shines. You can use the expo-cli to publish the app in a separate channel which you can use for your review purpose.

The expo team have also provided detailed documentation on their expo-github-action. Add the following configuration to your workflow (replace the URL in the msg with your application’s URL)﹣

expo-publish:
  needs: [test, lint]
  name: Publish to Expo 🚀
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@v2
    - uses: actions/setup-node@v1
      with:
        node-version: 12.x
    - uses: expo/expo-github-action@v5
      with:
        expo-version: 3.x
        expo-username: ${{ secrets.EXPO_CLI_USERNAME }}
        expo-password: ${{ secrets.EXPO_CLI_PASSWORD }}
    - run: npx yarn bootstrap
    - run: expo publish --release-channel=pr-${{ github.event.number }}
      working-directory: example
    - uses: unsplash/comment-on-pr@master
      env:
        GITHUB_TOKEN: ${{ secrets.GITHUB_TOKEN }}
      with:
        msg: App is ready for review, you can [see it here](https://expo.io/@daniakash/rex-state-example?release-channel=pr-${{ github.event.number }}).

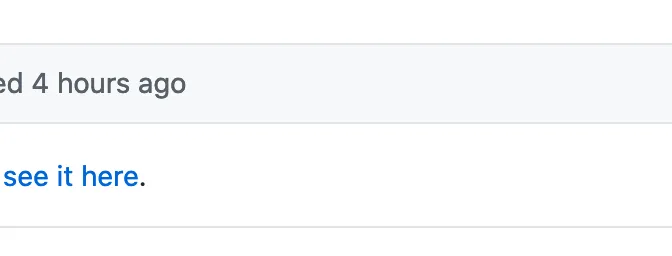

From now on, for every PRs you’ll get a comment just like this one ﹣

Sending stories to chromatic

Finally to do a visual review if the PR has affected your stories you can send the stories to chromatic. The configuration is the same as our last one, chromatic is smart enough to figure out that the data is from a PR!

chromatic:
  needs: [test, lint]
  name: Publish storybook to chromatic 🧪
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@v2
    - uses: actions/setup-node@v1
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - run: npx yarn chromatic
      working-directory: example
      env:
        CHROMATIC_PROJECT_TOKEN: ${{ secrets.CHROMATIC_PROJECT_TOKEN }}

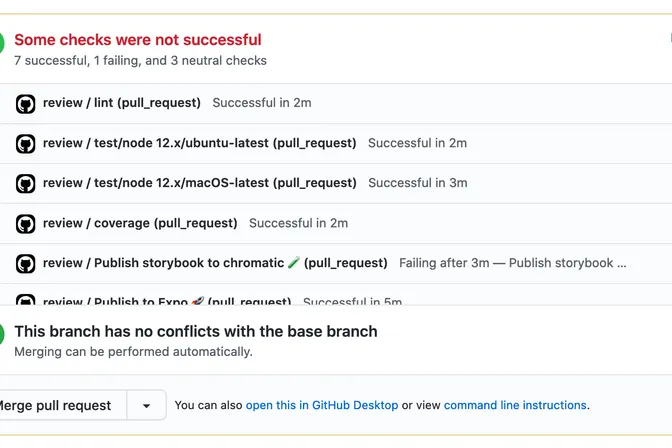

Once you have everything ready, Your PRs will now have detailed information on the things you’d otherwise have to check manually every time ﹣

We got a powerful review workflow now. In the next part, let’s publish the library to NPM every time you create a new release in GitHub!

This workflow is used in the .github/workflows/publish.yml file of my library rex-state

GitHub Releases

Releases section allows us to tag individual commits with proper version numbers & a detailed changelog.

I use it as my source of truth for managing versions. Which means, every tag should be automatically published to GitHub.

Trigger

This workflow will run on release when the the type is published

name: publish
on:
  release:
    types: [published]

Jobs

This workflow has three jobs. First two are linting & testing to ensure the code is stable.

lint:
  name: lint
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - run: npx yarn typescript
    - run: npx yarn lint

test:
  strategy:
    matrix:
      platform: [ubuntu-latest, macOS-latest]
      node: ["12.x"]
  name: test/node ${{ matrix.node }}/${{ matrix.platform }}
  runs-on: ${{ matrix.platform }}
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: ${{ matrix.node }}
    - run: npx yarn bootstrap
    - run: npx yarn test

Once the above two jobs are over, we’ll now use the JS-DevTools/npm-publish Action to publish an update to NPM.

You need to create an NPM Auth token and add it to your repository or organization secret under the name NPM_TOKEN

Then add the publish the job to your workflow ﹣

publish:
  needs: [test, lint]
  name: Publish to npm 🚢📦
  runs-on: ubuntu-latest
  steps:
    - uses: actions/checkout@master
    - uses: actions/setup-node@master
      with:
        node-version: 12.x
    - run: npx yarn bootstrap
    - uses: JS-DevTools/npm-publish@v1
      with:
        token: ${{ secrets.NPM_TOKEN }}

Whenever you create a release in your repository from now onwards, you’ll have an update published to your npm package.

This completes our React Native Library setup, you can use the setup + workflows you learnt in this 4 part series to publish both your React Native & React.js libraries.

I have been using it for both react-native-better-image which is for React Native & rex-state which works with both React.js & React Native.

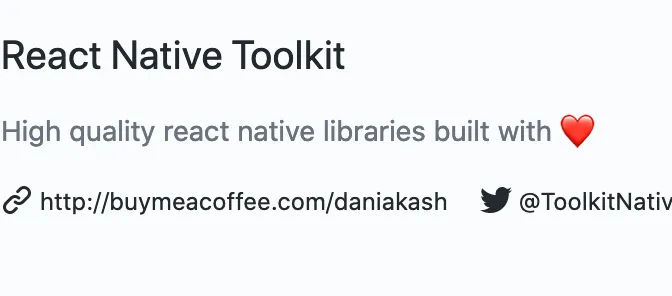

In future, I’ll be moving all my libraries in React Native Toolkit to this workflow which will help me maintain all my current 10+ libraries & some upcoming ones efficiently.

If this series helped you or you have any feedback feel free to post a comment or reach out to me on twitter. I’d be happy to help! :D
